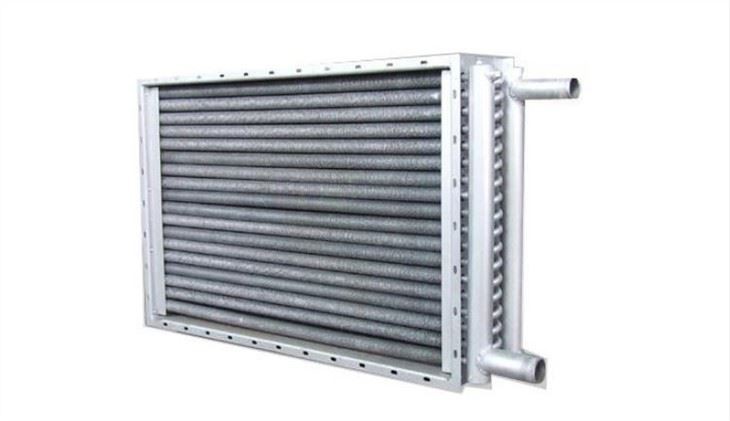

UⅡ Finned Tube Radiator

UⅡ type finned tube heat exchanger is a kind of radiator pipe suitable for both steam heating system and hot water heating system. Its inlet and outlet joints are on the same side, and the inlet and outlet pipes are connected by U-shaped elbows. To meet some special requirements on installation,… UⅡ type finned tube heat exchanger is a kind of radiator pipe suitable for both steam heating system and hot water heating system. Its inlet and outlet joints are on the same side, and the inlet and outlet pipes are connected by U-shaped elbows. To meet some special requirements on installation, that is, one end of the radiating pipe must be against the wall or there are other obstacles, etc. The finned tubes are all made of φ16×1mm copper tubes wound with 10×0.2mm corrugated copper strips, which are spiral, with 3.2mm-“R”, 4.2mm-“M”, 6.5mm-“T” Three different chip pitches, “R” kind of chip pitch, small chip pitch and large heat dissipation area have large heat dissipation: “M” kind of chip pitch, large chip pitch, low heat dissipation and air resistance: “T “Large film spacing, suitable for high steam pressure and low air temperature. The UⅡ finned tube radiator has a variety of different surface tube lengths. There are 765 kinds of sizes and specifications for various combinations of tube number, row number and fin pitch. After the fin tube is wound, the surface is immersed with tin alloy to ensure that the fin and the tube are in close contact, and achieve the beautiful and anti-corrosion effect. The connection between the fin tube and the intake and return water main pipe is brazed. Other process details are strictly required and carefully considered to ensure that the radiator has good performance, durability, easy installation, and economical cost.
