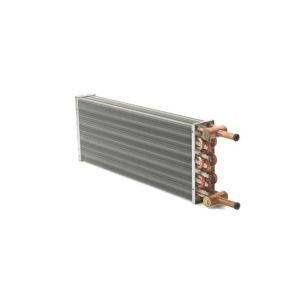

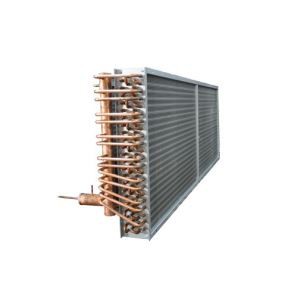

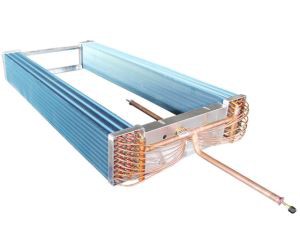

AC Evaporator Coil

We are exporting AC Evaporator coil to Australia, New Zealand, Italy, Ukraine, Saudi Arabia and other country with high clients’ satisfaction and good relation.

Tube Options:

Material Copper, aluminum, stainless steel, galvanized steel, titanium
Diameter 5mm, 7mm, 7.94mm, 9.52mm 12.75mm or 15.88mm
Rows available are 1, 2, 3, 4, 5, 6, 8, 10, 12 and 16.
We have different fin mold.

Fin Options:

Material Copper, aluminum, stainless steel, titanium
Type Flat fin, Sine wave with blade fin, Smooth sine wave fin, Window fin, Sesamoid fin
Fin space between 1.3—20mm, adjustable according to the mold
Contact us for availability of other patterns, fin materials, and thicknesses.

Headers:
Copper, steel, stainless steel

Connections:
Copper refrigerant distributors. Standard coil has one distributor for one compressor circuit. If coil has two distributors that mean this system use two compressors. A split coil has two or more distributors for multiple compressor system.

Casing Material Options:
Galvanized steel is standard, with optional stainless steel, aluminum and copper.

Testing & Performance:
All coils are leak tested under water at 30bar nitrogen air, no leaking within 3 minutes. With Nitrogen charged for shipping.

The characteristics of AC Evaporator coil:
