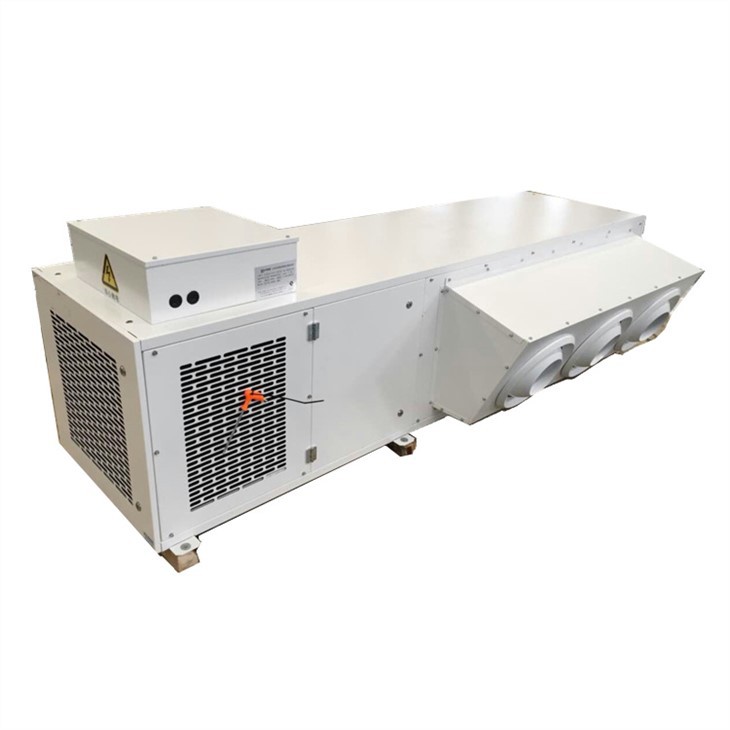

Air Handling Unit For Large Spaces

air handling units for large spaces are suitable for tall spaces, such as large workshops, tall factories, stadiums, theaters, concert halls, airport waiting halls, etc.

It has an integrated structure (housing) in which there are blowers, heat exchange coils, wet film humidifiers (optional), condensate pipes, air distribution devices, etc. Among them, one end of the shell is provided with a return air grille, and a return air filter is provided at the return air grill, and an air supply port is provided at the other end of the housing, and the air supply port is a spherical nozzle (or equipped with a diversion Blade); the heat exchange coil is arranged in the shell; the condensate plate is installed under the heat exchange coil, and the condensate lift pump can be optionally equipped under the condensate plate.

The equipment is converted to a high and large space design distributed system, and the jet air supply distance is 6-25 meters, so that the indoor temperature and air quality are evenly distributed.

The advantages of this product series are: various internal machines, no need to connect air ducts and other equipment, only need to connect to cold and heat sources and power distribution lines can be used, its adjustment and installation are simple, and can be combined arbitrarily to meet the needs of large spaces, and Energy saving.
