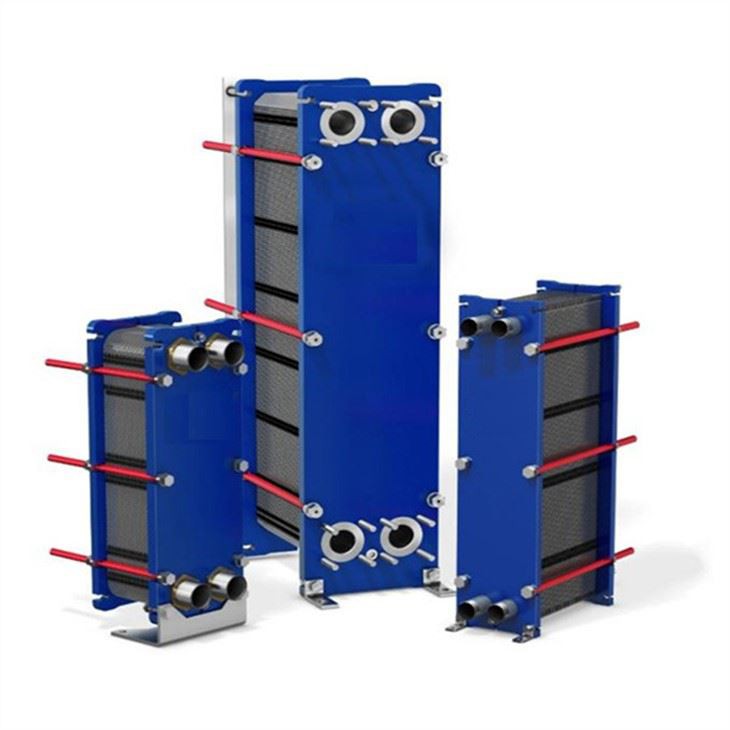

Detachable Plate Heat Exchanger

The detachable plate heat exchanger is a kind of plate heat exchanger.

It is made of many heat exchange plates (thin metal plates stamped with corrugated grooves), sealed by sealing gaskets at certain intervals, and compressed with clamping studs. The holes at the corners form a continuous channel. The medium flows from the The inlet enters the channel and is distributed to the flow channel between the heat exchange plates. Each plate has a sealing gasket, and the positions between the plates are alternately placed. The plates are separated. Generally, the two media flow countercurrently in the channel. The heat medium transfers heat energy to the plate, and the plate transfers heat energy to the cold medium on the other side, so that the temperature of the heat medium decreases and is cooled. The medium temperature rises to get the purpose of heating.

The main features of the detachable plate heat exchanger are:

–High heat transfer coefficient;

–Convenient maintenance and cleaning;

–Low fouling factor;

–Compact structure, small footprint and light weight;

–It is easy to change the heat transfer area or process combination;

–Small temperature difference at the end, etc.

Sheet material:

Stainless steel: SUS304, 316, 316L, 310S

Titanium and titanium-palladium alloys: TAi,TAi-pd

Hastelloy: C276, D205, B2G

Molybdenum: 254SMO

Pad Material:

Nitrile rubber gasket NBR, ≤120℃

Resistant to mineral oil, animal oil, vegetable oil and other non-polar media

Hydrogenated Nitrile Gasket HNBR, -5-160℃

Resistant to non-polar media such as sulfur-containing crude oil, mixed media containing H2S, and high-temperature cooking oil

EPDM gasket, ≤150℃

Resistant to hot water, water vapor, edible beverages, high-temperature sterilization of milk

High temperature EPDM gasket HEPDM, -25-170℃

Resistant to hot water, water vapor, edible beverages, high-temperature sterilization of milk

Fluorine Rubber Gasket Viton/FPM, -5-180℃

Acid and alkali fluid
