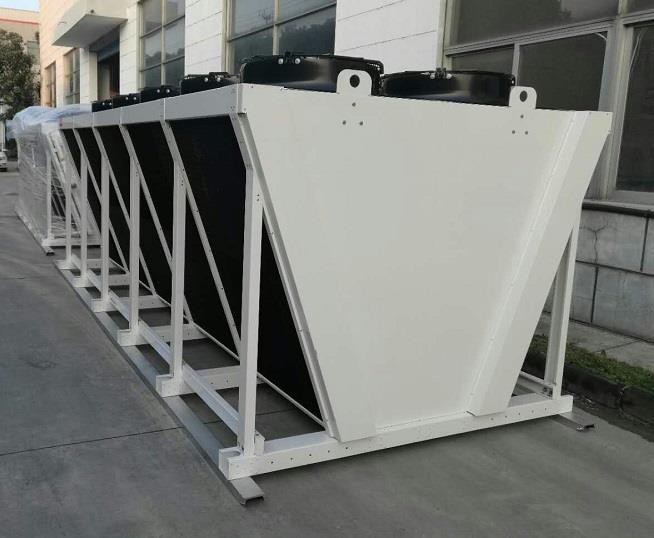

Dry Cooler HVAC

Dry cooler hvac is used to cool processing liquids, typically pure water or brine water, especially in refrigeration applications, air conditioning or industrial processes, such as free cooling and the cooling of liquids circulating in industrial molds.

Coolers are called “dry” because they use air as a secondary fluid. The solution compared to functional water, such as cooling towers, air avoids the problems caused by the formation of fouling.

Performance range

Capacity: from 30 to 1000Kw

Air flow: from 5280 to 175940 cubic meters / hour

Dry Cooler and CO2 Gas Cooler: Customized on request

Coil characteristics

High heat transfer efficiency

Special profile aluminum fins and inner tank brass design

Casing features

Made of pre-painted galvanized sheet metal

Fan motor features

Three-phase, with external rotor

Sickle blade

Protection class: IP 54

Insulation class: F

Internal contact protection

Test

The heat exchanger is supplied clean and tested at a pressure of 30 bar.
