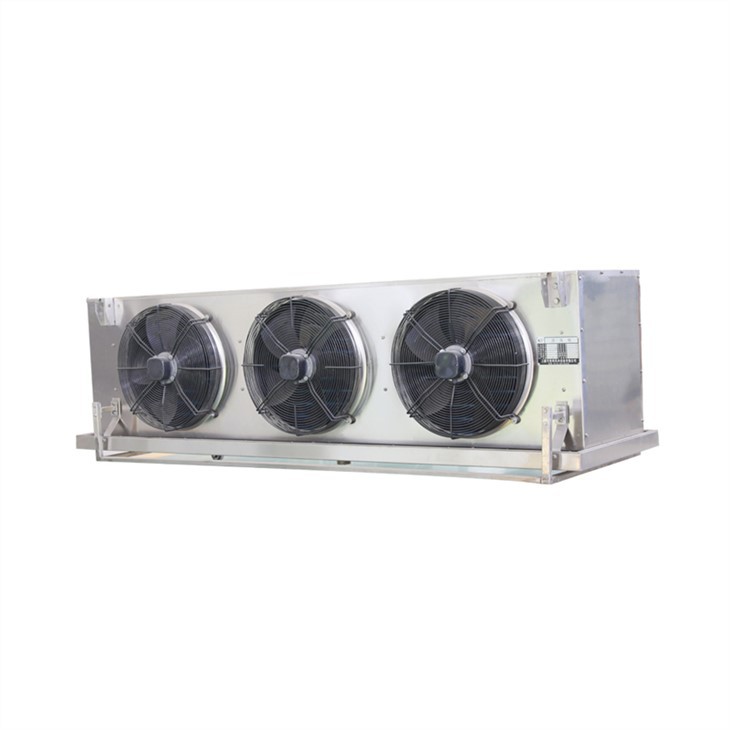

Freon Air Cooler

Freon air coolers are mainly used for various small cold storages.

Best use of different fin space:

The fin space 4.6mm, suitable for storage temperature above -10℃;

The Fin space 6.0mm, suitable for storage temperature -15～20℃;

The fin space 9.2mm, suitable for storage temperature below -25℃.

Fin space can be customized.

Refrigerant: Froen / NH3 / CO2 / Glycol

Defrost Way: Electrial / Water Spray / Hot Gas

Fans

Low noise, maintenance free fan-motors.

Standard motors are suitable for temperature from -40~+45. customized motors with equirements are available.

Standard motors are 2 speed and capacities and air flow shown in tables are at high speed (delta wired). Standard air discharge is horizontal, draw through, yet other arrangements are possible

COIL

Tube material: Stainless steel, aluminum, copper, titanium.

Fin material: aluminium,epoxy coated aluminium.

Fin spacing: 4,7,10,12 and dual 16.8 mm coil

CASING

Galvanised sheet,powder coated RAL 9010

Features: -Apply for both Freon & Ammonia

– Aluminium tube & fan; Stainless steel tube and Aluminum fan

– High quality axial flow fans and mesh fans

– Long lifetime

– High heat-transfer efficiency

.

Application: The operational areas are super markets ,petrol stations ,butcher’s shops ,slaughter houses ,groceries reloading points ,cold storages and much more .

The system provides here optimal protection of goods-guaranteed through high safety of temperature .

Air cooler are important components and guarantors for an efficient operation .
