Immersion Cooling

Immersion is the practice of completely submerging or submerging mining equipment in a thermally conductive liquid that is better insulated than ordinary air.

Immersion of powered electronic mining rigs in specially designed liquids such as mineral oil, dielectric oil can better dissipate heat from computer chips that are always hot and hashed.

Dry coolers and plate heat exchangers combined with indirect cooling of Bitcoin immersion miners are currently the most popular and economical cooling methods.

We designed standard dry cooler model for immersion cooling system. From 40KW to 240KW, Fully meet your cooling needs.

Schematic diagram of immersion cooling with dry cooler and plate heat exchanger as below：

Standard Dry Cooler:

40KW Dry Cooler for Immersion Cooling System:

Suitable for the single immersion enclosure.

40KW Dry Cooler Direct Cooling
Capactiy: 40KW
Fluid Temperature(Inlet/Outlet)(℃) 60/40
Air Temperature(Inlet/Outlet)(℃) 35/46.1
Power Standard 220V/1Ph/50Hz
Dimensions 1687x700x952mm
Material: Copper Tube Aluminum Fin GI Steel powder coating Casing

40KW Dry Cooler with Plate Heat Exchanger Indirect Cooling
Capactiy: 40KW
WATER Temperature(Inlet/Outlet)(℃) 40/60
BC-888 Temperature(Inlet/Outlet)(℃) 65/45
No. of plates 73
No. of effective plates 71
Plate material ALLOY 316
Thickness 0.4mm
Number of passes 4

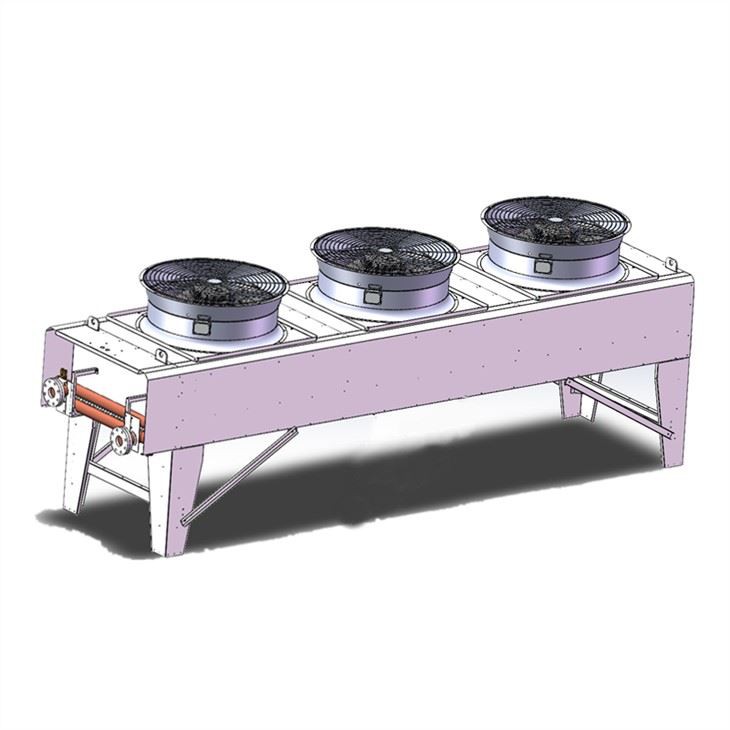

120KW Dry Cooler for Immersion Cooling System:

Suitable for the Immersion Rack System.

120KW Dry Cooler Direct Cooling
Capactiy: 120KW
Fluid Temperature(Inlet/Outlet)(℃) 60/40
Air Temperature(Inlet/Outlet)(℃) 35/46.1
Power Standard 460V/1Ph/60Hz
Dimensions 3410x1115x700mm
Material: Copper Tube Aluminum Fin GI Steel powder coating Casing

120KW Dry Cooler with Plate Heat Exchanger Indirect Cooling
Capactiy: 120KW
WATER Temperature(Inlet/Outlet)(℃) 40/60
BC-888 Temperature(Inlet/Outlet)(℃) 65/45
No. of plates 121
No. of effective plates 119
Number of passes 4
Extension capacity 4
Plate material ALLOY 316
Thickness(mm) 0.4

240KW Dry Cooler for Immersion Cooling System:

Suitable for the multiple Immersion Racks.

240KW Dry Cooler Direct Cooling
Capactiy: 240KW
Fluid Temperature(Inlet/Outlet)(℃) 60/40
Air Temperature(Inlet/Outlet)(℃) 35/45.85
Power Standard 460V/1Ph/60Hz
Dimensions 4165X2100X1710mm
Material: Copper Tube Aluminum Fin GI Steel powder coating Casing

240KW Dry Cooler with Plate Heat Exchanger Indirect Cooling
Capactiy: 240KW
WATER Temperature(Inlet/Outlet)(℃) 40/60
BC-888 Temperature(Inlet/Outlet)(℃) 65/45
