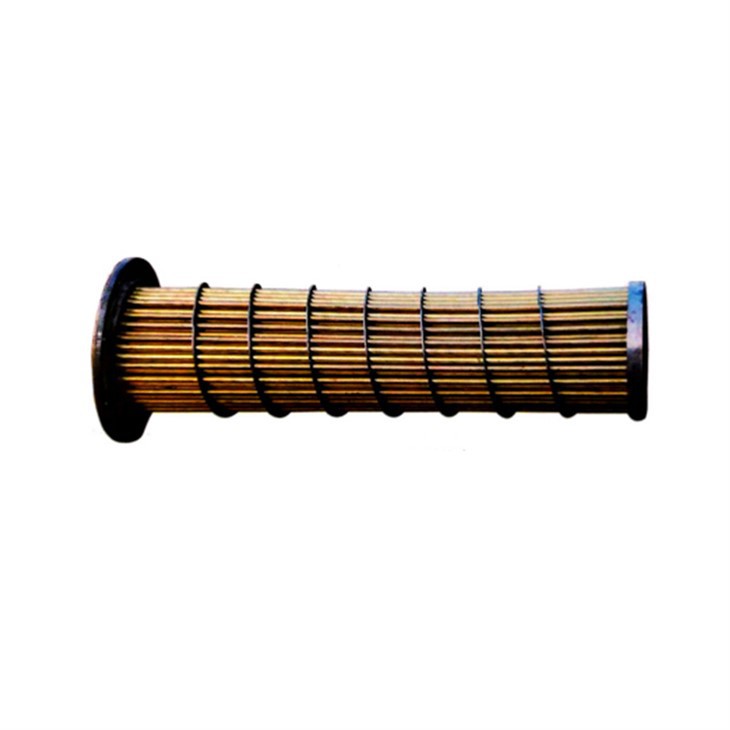

Pipe Bundle Heat Exchanger

A pipe bundle heat exchanger is a type of heat exchanger that consists of a bundle of pipes enclosed in a shell. It is used for transferring heat between two fluids by having one fluid flow through the pipes and the other fluid flow around the outside of the pipes in the shell. This type of heat exchanger is commonly used in industrial applications where there is a need to transfer large amounts of heat between fluids.

Here are some key design considerations for a pipe bundle heat exchanger:

Materials: The materials used for the pipes and shell must be compatible with the fluids being used and be able to withstand operating temperatures and pressures.
Pipe diameter and spacing: The pipe diameter and spacing are important design considerations to ensure adequate heat transfer and to avoid fouling or clogging of the pipes.
Flow rates: The flow rates of both fluids are critical to ensure adequate heat transfer. The flow rate should be optimized to achieve the desired temperature change and heat transfer efficiency.
Baffles and passes: Baffles can be used inside the shell to enhance fluid flow and improve heat transfer. The number of passes also affects the heat transfer efficiency.
Pressure drop: The pressure drop across the heat exchanger should be minimized to reduce energy consumption and ensure proper flow rates.
Insulation: The heat exchanger should be properly insulated to prevent heat loss and improve energy efficiency.

Proper design, installation, and maintenance of the pipe bundle heat exchanger can ensure reliable and efficient heat transfer between two fluids. Regular cleaning and inspection of the pipes and shell are important to prevent fouling and clogging, which can decrease heat transfer efficiency and increase maintenance costs.
