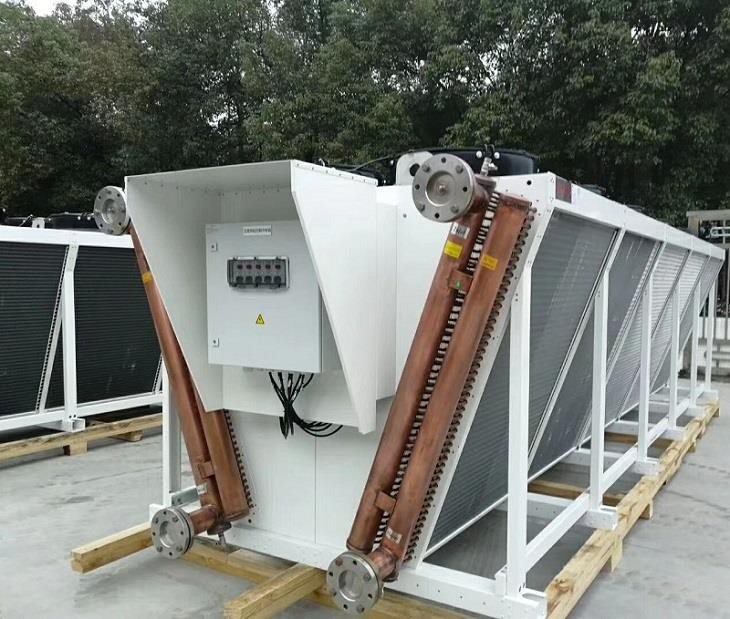

V Type Air Cooled Condenser

FEATURES AND APPLICATIONS• Air cooled condensers are designed for outdoor installation including 4 different noise levels. No external pressure drop is considered.• Capacity range: we accept customized condenserCoil Block• Staggered tube alignment,• Internally grooved copper tubes specially for condensers, aluminium fins, we also have stainless steel tube• 2,1 – 2,5 mm of standart fin pitches. Other fin pitches are optional,• Circuit design are suitable for refrigerants R404A, R507, R134A, R407A, R717, R744 and R407C.• Sliding collars and free holes system combination used in supporting end-plates that prevents any contact between tubes and end-plates and this system ensures long life operation without leakages. • Standart Test Pressure: 34 bar CASING• Condensers have their own self supporting construction and do not require any extra accessories for installation on steel or concrete base. • Each fan chamber is separated by internal baffle plates to prevent induced windmilling of off-cycle fans. • All models are equipped with lifting eyes.FANS• Highly efficient axial Ziehl Abegg, EBM or equivalent fans with diameters 500 mm, 630mm, 800 mm, 910 mm are used in suction direction for condensers.• Electrical specifications for 500/ 630/ 800/ 910 mm fans are 400V 3~50Hz, could be run at two different speeds and EC fans with speed control is optional.• Variable fan speed regulation can be achieved by using three phase fans with frequency inverter and all pole sine filter.• All motors feature internal protection and protection class IP54; insulation class F.• Ambient temperature range for exterior operation is between -40°C and +50°C / +65°C. For standart fans, temperature for exterior operation can be +75°C according to fan type.• Different fans and motors are optional for high working temperatures.• Fans are running in a housing designed to maximize air flow rate. Guard grilles of fans are standart.• Friterm reserves the right to use fans of different manufacturers. Depending on the type, the fan data may slightly vary. Hot Tags: v type air cooled condenser, China, manufacturers, suppliers, price, for sale
